Full Rotary Printing Machine

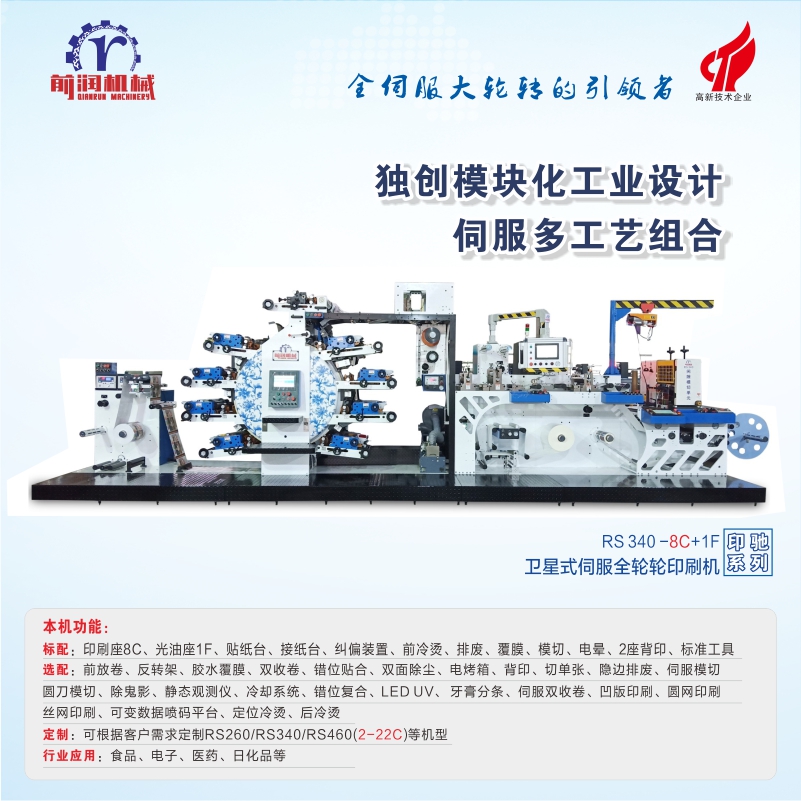

RS340-8C+1F INCH High-speed & Full Rotary Letterpress Printing Machine

Product introduction
★This rotary label printing machine is compatible with cosmetic label、Food label, water label, drug label, electronic label,bar code label etc.
Service guarantee
非人为损坏提供一年售后服务,免费技术支持,终身提供服务!
Contact us
销售热线:180 2823 5969 客服热线:0769-85963666
客户投诉:189 9808 0900 售后服务:137 1299 0086
  • Product details

  • Technical parameters

Video










Technology Parameters



Model RS340-8C+1F
Number of Printing Polor 8 color embossed + flexo glazing
Max. Web Width(mm) 340(13.25 inch)
Max. Printing Width(mm) 334(13 inch)
Max Printing Length(mm) 457.2
Max Speed 100m/min
Ink UV off set ink/UV flexo ink
Centre Impression Drum  ø1300mm rubble-lined
Max. Dia of Unwind Roll 800mm
Max. Dia of Rewind Roll 800mm
Machine Size(L*W*H:m)   6*1.8*2.25
Net Weight(Kgs)  8000
Power(V/Kw) 3phase 380V, 45KVA, 50/60HZ
Air Pressure 0.6Mpa(6kgf/cm )
Operation Noise  〈85db





Basic Information

Function
Unwinder-Printing(8color, 2color printing on glue side,4color for both side)-gold stamp-Lamination-Die cuter-Waster- Rewinder

Standard Accessories
1.Letter press print station
2.Flexo varnish surface coating
3.UV dryer
4.Printing cylinder
5.Egdes trimming device
6.Rotary die cutter
7.Corona theater
8.Electrostatic eliminator
9.Lamination
10.Front cold stamping
11.Waster device
12.Back printing unit
13.Glue side printing unit

Optional Configurations
1.After cold stamping
2.Static state observation system
3.Cooling system
4.Optional 2-22 color
5.Digital printing for barcode
6.Rotary screen printing device

Features
1.Compared with common label printing machines, RS260-8C+1F can reach a high speed of 100M/min andl with more precise positioning and more accurate color printing.  Advanced ink distribution ensures more even coloring.
2.With both flatbed die cutting and rotary die cutting systems.
3.Koldfoil stamping in the front, middle, back, and local or positioned stamping can be completed synchronously and quickly.
4.Multi-color printing on backside can be realized by optional backside printing device.
5.With function of spacer and local degumming, base paper stripping off, gelatinizing and sealing.
6.HP inkjet technology is applied in bar code label designing.
7.Optional inspection machine will feed and inspect labels automatically, which saves labor costs.
8.With Corona surface processor.

Printing Materials
Adhesive Tape、Washing Mark、Art Paper、PET、PE、PVC、PP、Synthetic Paper、Protective Film、Pearlescent Film、Dumb Silver、Laser paper

Industry Appilcations
Cosmetic Label、Food Label, Water Label, Drug label, Electronic Label,Bar Code Label,Toy Label,PVC Label,Reverse Stickers

Customization
According to customer's requests, RS260 can be customized from 2 colors to 12 colors or other models like RS320, RS400, RS460
